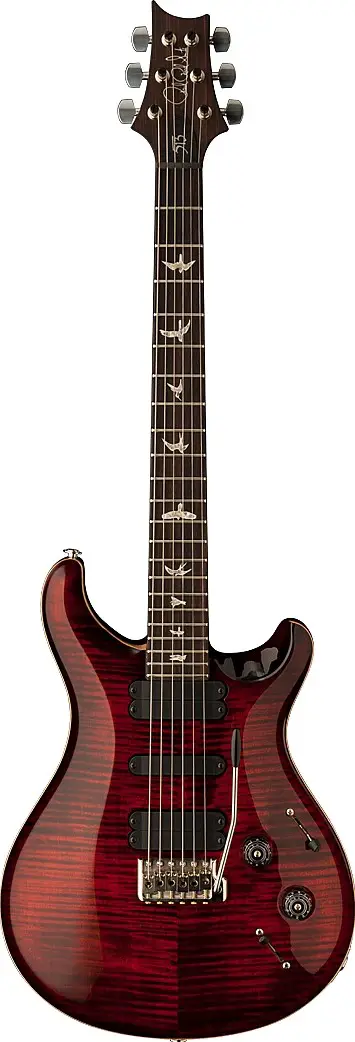

513 is a guitar in its own league. It is expensive, elegant and beautiful. But above all, it is a true tone machine. Five single-coil pickups (four of them are arranged in two humbuckers, with a lone single-coil in the middle), PRS`s custom developed controls unit and supreme hardware set this marvel apart from similarly priced guitars. 513`s specs list opens up with a double-cut body made of mahogany back and flamed maple top (carved, made of two matching pieces). Set mahogany neck rocks pattern profile in the back and a 22-fret rosewood fingerboard on top. 513 Patented Pickup System includes five coils arranged in classic H/S/H pattern. Five-position pickup switch and three-position humbucker mode switch give a grand total of thirteen distinctive tones. PRS trem bridge and Phase III locking tuners complete the list of major features.

513 Full Specs

Tap on Spec for Quick Find
Body Shape Les Paul Double Cut
Body Type Solid Body
Body Construction Double cutaway
Carved Top Yes
Body Wood Mahogany
Body Top Wood Maple (Flame)
Neck Wood Mahogany
Neck Shape Pattern
Neck Joint Set neck
Neck Joint Glued In
Fingerboard Material Rosewood
Number of Frets 22
Fingerboard Inlays Bird
Number of Pickups 3
Bridge Pickup Type Humbucker
Middle Pickup Type Single Coil
Neck Pickup Type Humbucker
Controls Volume
Controls Tone
Pickup Switch Type 5-Position Blade
Bridge Tremolo
Bridge String Through
Hardware Nickel
Number of Strings 6
Tuners PRS
Tuners Locking
Scale Length 25"
Finish Gloss
Custom Features: Pickups: PRS 513 patented pickup system. Controls: volume, tone, five-position pickup switch, three-position humbucker mode switch (three-position blade switch located behind the tone knob).
